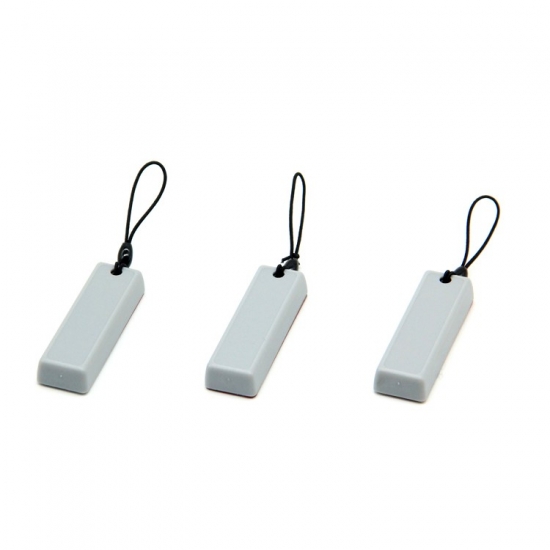

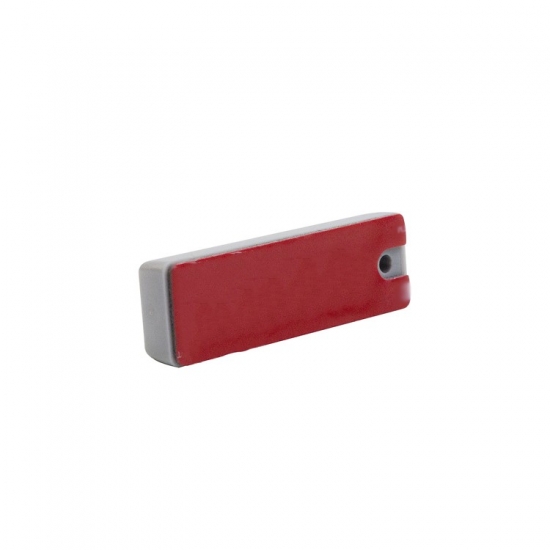

Special UHF passive hard tag U CODE7 long reading distance anti-metal RFID ABS smart hard tag label

RFID anti-metal tag is also a kind of electronic rfid tag, which is generally used to transmit and receive data.The surface will use materials that can absorb electromagnetic waves.This material also has some advantages:like lighter in weight, can withstand high temperature, damp proof, can resist corrosion.According to different application, it devided to:UHF full band metal resistant tag,High temperature resistant anti metal tag,small size anti metal tag,

Ultra thin flexible anti metal label, paper anti metal label, pvc anti metal label, car label etc.

item no.:
Special UHF passive hard tag U CODE7 long reading distance a
Payment:
T/T,Western Union,Paypal
product origin:
Shenzhen, China
Color:
Customized
shipping port:
Shenzhen,Hongkong
Lead Time:
7-8 working days

inquiry now

product details

Product Description:

Material	ABS+PC or customized according to environmental
Size	59.519.59.5 mm
Weight	7.8g
Data services	Data and Laser number can be customized upon customers' requirements
Protocols	ISO/IEC 18000-6C & EPC global Class 1 Gen 2
operating frequency	902- 928MHz(US)
Chip(IC)	Impinj / Monza R6-P
Memory	EPC : 128 bits
	Unique TID : 64 Bits
	User: 32 Bits
Reading distance	10~12(m) based on fixed reader (metallic surface)
Reading distance	5~6(m) based on mobile reader (metallic surface)
Data retention	10 years
Operating temperature	-40℃ to +85℃
Storage temperature	-40℃ to +85℃
Installation	fix with screw
Packing:	100 pcs/opp bag,4 opp bag/CNT,4.8KG/CNT or According to the actual shipment
Applications	Tool tracking,medical equipment management,instrument tracking,production line equipment, IT / Energy Routine Inspection.

Why choose Meihe?
rfid asset tags

Established in 2000, Shenzhen Meihe Induction Co.,Ltd is a leading manufacturer specialized in the designing,researching, manufacturing and selling of Rfid products.We will supply more diversified designs and professional services continuously and we sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.We are looking forward to receiving your enquiries soon.

rfid tracking stickers

Application Scenario:

The ABS RFID anti-metal tags are widely used in the dyanmic critical steps,such as storage,manufacturing,container management,automobile and personnel management.The tags along with software can highly promot business developing.

Payment and Delivery:

rfid label manufacturers
