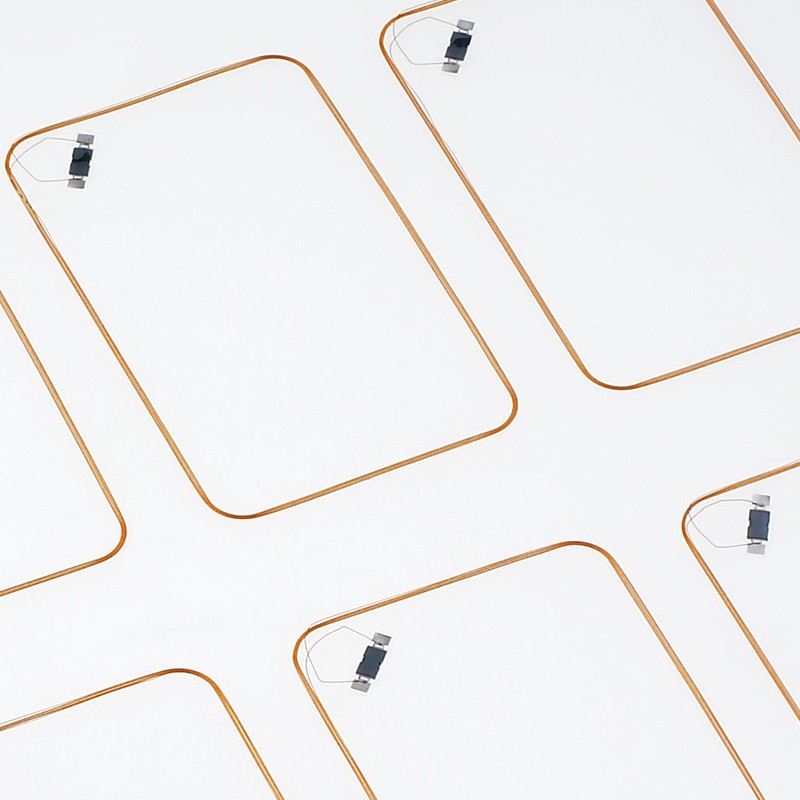

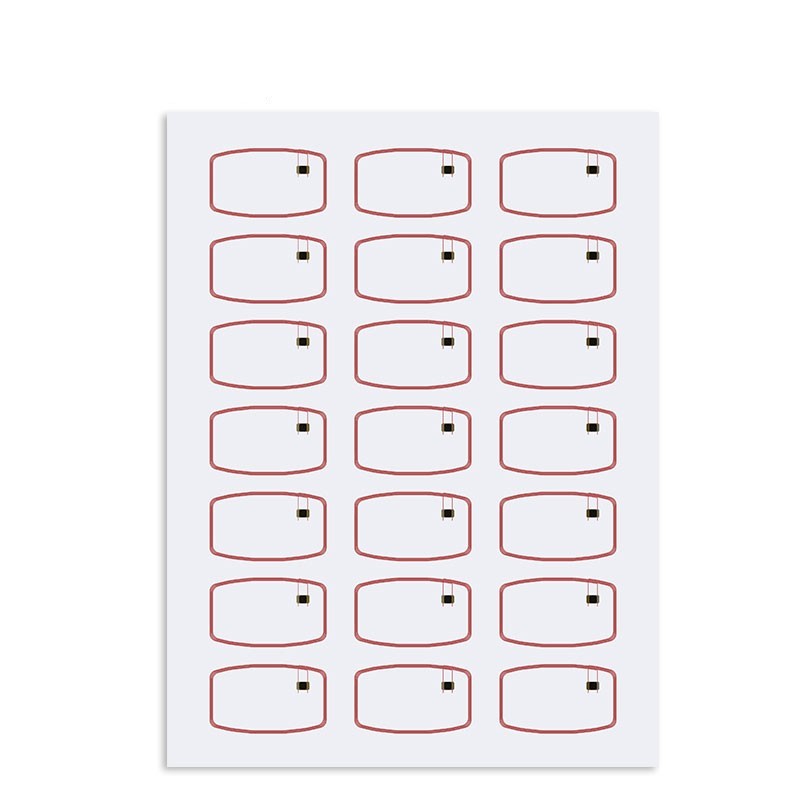

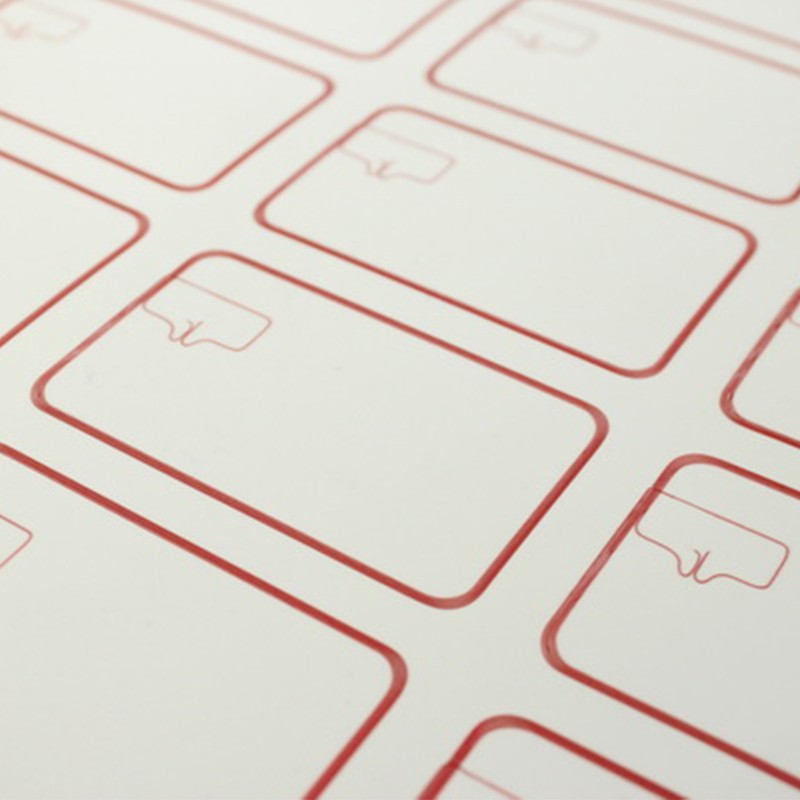

RFID pre-laminated inlays are designed specifically with the card manufacturer Meihe. The inlay is engineered to remove process difficulties and offer an exceptional product.Meihe's inlays are very robust and boast unequaled torsion / bending characteristics, extreme durability and optimized read / write performance. The inlays have a completely flat finish and bring numerous benefits to card manufacturers.We make the card manufacturer’s job easier without sacrificing quality.
Item NO. :
3*7 MIFARE DESFire EV1 2K 4K RFID Inlay for Smart Card MakinPayment
T/T, Western Union, PaypalProduct Origin
Shenzhen, ChinaColor
CustomizedShipping Port
Shenzhen, HongkongLead Time
7-8 working daysBrand
MHProduct Minorder
500| Chip Type | Protocal | Capacity | Anti Collision | Function |
| Available 125KHz Chip | ||||
| Hitag 1 | ISO11784/5 | 2K Bit | No | Read/Write |
| Hitag 2 | ISO11784/5 | 256 Bit | No | Read/Write |
| Hitag S256 | ISO11784/5 | 256 Bit | No | Read/Write |
| Hitag S2048 | ISO11784/5 | 2K Bit | No | Read/Write |
| Available 13.56MHz Chip | ||||
| Ntag203 | ISO14443A | 144 Byte | No | Read/Write |
| Ntag213 | ISO14443A | 180 Byte | No | Read/Write |
| Ntag215 | ISO14443A | 540 Byte | No | Read/Write |
| Ntag216 | ISO14443A | 924 Byte | No | Read/Write |
| MIFARE 1K | ISO14443A | 1KB | No | Read/Write |
| MIFARE 4K | ISO14443A | 4KB | No | Read/Write |
| MIFARE Plus | ISO14443A | 2KB/4KB | No | Read/Write |
| MIFARE DESFire | ISO14443A | 2KB/4KB/8KB | No | Read/Write |
| MIFARE Ultralight EV1 | ISO14443A | 640 Bit | No | Read/Write |
| MIFARE Ultralight C | ISO14443A | 1184 Bit | No | Read/Write |
| I CODE SLI | ISO14443A | 128 Byte | Yes | Read/Write |
| Other chips available upon request and quantity of order. | ||||
| Material | PVC, PET, PETG, PC |
| Colour | White or Transparent |
| Frequency | LF (125KHz), HF (13.56MHz), UHF (860-960MHz), or combi LF+HF, HF+UHF, LF+UHF |
| Standard | ISO/IEC 11784/785, ISO14443A, ISO15693, ISO18000-6C |
| Dimension | 310*468mm, Max. size 520*420mm, A4 210*297mm, etc. |
| Layout | 2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized. |
| Thickness | HF: normal 0.45mm, 0.5mm, min.0.3mm LF: normal 0.6mm, Min. 0.5mm UHF: 0.6mm, 0.5mm |
| Antenna | HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding LF: Pre-winding Copper Coli, AL Etching UHF: AL Etching |
| Read Range | more than 50mm with our reader |
| Work Temperature | -25℃ to +55℃ |
| Store Temperature | -25℃ to +65℃ |
| Applications |
Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc. |
