Meihe prepressed inlays are designed specifically with the card manufacturer in mind. The inlay is engineered to remove process difficulties and offer an exceptional product. We make the card manufacturer's job easier without sacrificing quality.
Item NO. :
Prelaminationed 13.56MHZ HF Inlay SheetPayment
T/T, Western Union, PaypalProduct Origin
Shenzhen, ChinaColor
CustomizedShipping Port
Shenzhen, HongkongLead Time
7-8 working daysBrand
MHProduct Minorder
500

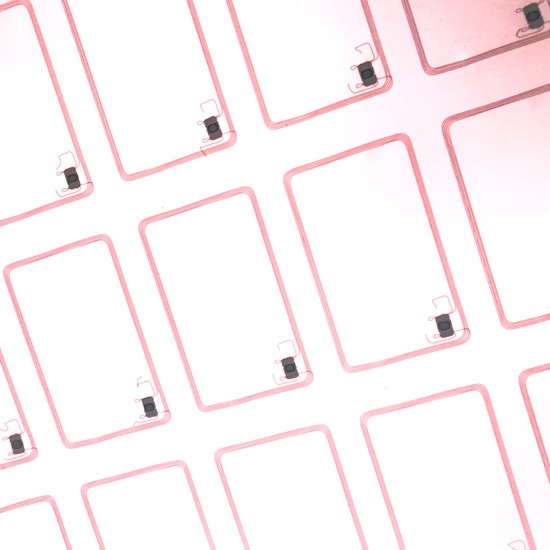

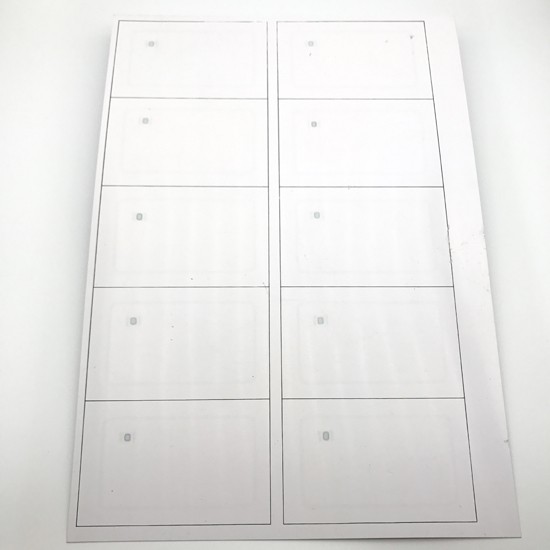

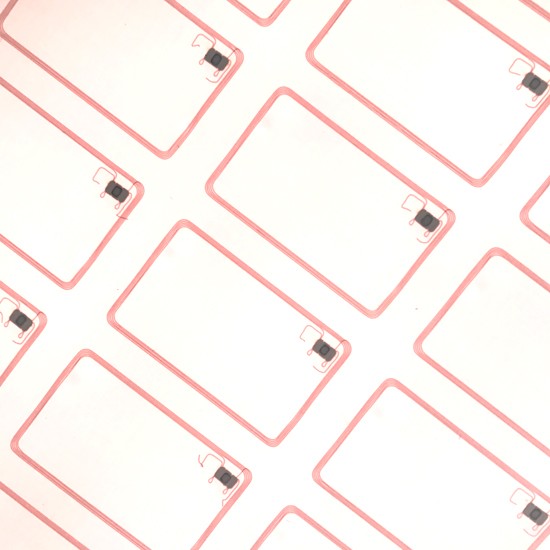

Prelaminationed LF HF UHF Prelam Sheet
Description
Meihe prepressed inlays are designed specifically with the card manufacturer in mind. The inlay is engineered to remove process difficulties and offer an exceptional product. We make the card manufacturer's job easier without sacrificing quality.
Specification
1.Operating Frequency: LF 125KHz,HF 13.56Mhz or UHF
2.Chip IC: TK4100,F08, MIFARE 1K, MIFARE 4K, MIFARE Ultralight, MIFARE DESFire EV1, I CODE SLI,Alien H3,etc
3.Protocol: ISO1443,ISO15693,ISO18000
4.Material: PVC/PET
5.Dimension: 310mm*468mm,Max size 520mm*420mm,A4 210mm*297mm
6.Layout: 3*7,5*5,3*8,4*8,4*6,2*5,2*4, or any customization of CR80 card or any unit antenna
7.Thickness: HF: normal 0.45mm, 0.5mm,
LF: normal 0.6mm,min 0.5mm
UHF: 0.6mm,0.5mm
8.Antenna: HF:air antenna,altrasonic embeding or air etching
LF:air antenna or altrasonic embeding
UHF:AL etching
9.Bonding: LF: wire bonding
HF:FUDAN,ULTRALIGHT,ICODE SLI
UHF: ALIEN, H3
10.Read range: depands on the reader and the chip
11.Working temperature: -25℃~55℃
12.Storage temperature: -25℃~65℃
