Textile Linen Tracking 860~960Mhz RFID Laundry Tag for Laundry Management
Whether it's streamlining the laundry processes for hotels and hospitals or revolutionizing apparel manufacturing and bulk garment management, Fabric RFID Tags are the linchpin for efficiency and precision in the textile industry.
Features
- Ultra-Thin Design: These fabric tags boast a sleek and discreet profile, ensuring minimal interference with the garment's comfort and appearance.
- Flexibility: The RFID fabric tags are supple and flexible, adapting effortlessly to the curves and folds of various textile materials.
- Soft Material: Crafted from soft textiles, these tags prioritize wearer comfort while remaining durable under challenging laundering conditions.
- Fabric Construction: Entirely constructed from fabric material, these RFID tags seamlessly blend into the garment, preserving both aesthetics and functionality.

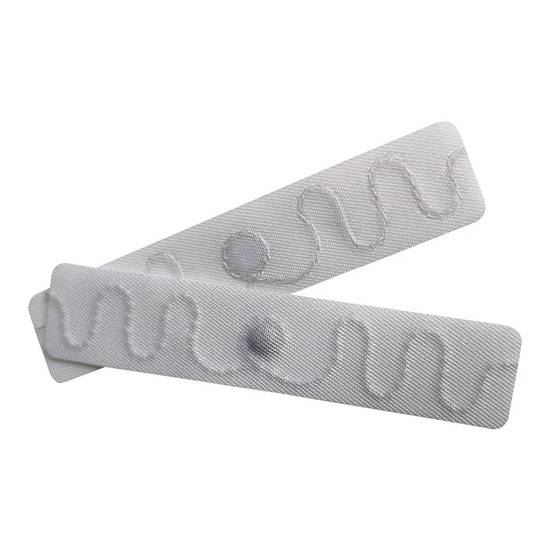

Product Description
Protocol
EPc Class 1 Gen 2/1s0 18000-6c compliant
Material
50% cotton,50% polyester
Size
70*15mm,50*18mm ,:36*36mm,70*17mm or customized
Chip
NXP U CODE 7/8
Frequency
860-960 MHz/902~928 MHZ

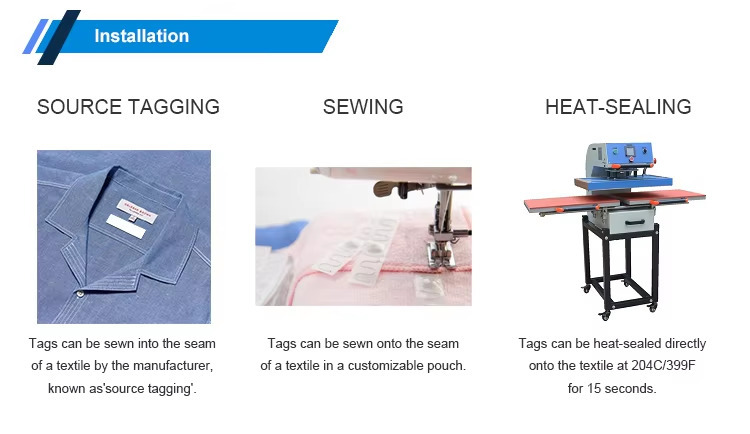

Tagging
sew or insert
EPC Memory
128 bits
User Memory
32 bits
Read Range(Fixed)
70*15mm:7m(22 feet)The final read range depends on RFID Reading equipment and application environment.
Read Range(Handheld)
70*15mm:5m(16 feet),The final read range depends on RFID Reading equipment and application environment.
Humidity/ Temperature-Operating
-40~85℃（-40~185F）
Humidity/Temperature-Storage
-40~120℃(-40~248F), 50% RH
Tag lifetime
First of 200 wash cycles or 3 years from ship date
Product Show
Advantages of RFID LienTags

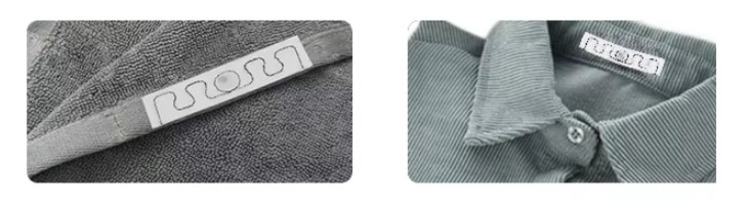

●Imperceptible and unnoticeable, perfect for insertion into the narrowest hems of the finest flat linen.
●Extraordinary no-wear feel for extreme comfort and into all kind of garments(private & workwear).
●Can cope with various environments. Washable. corrosion-resistant, elastic and soft, hidden and not easy to be found
Application
