RFID Vibrating Countdown Wristband System for Time Based Attractions

RFID Vibrating Countdown Wristband System for Time Based Attractions

Manage timed attractions with MH-CR03 RFID countdown wristbands, vibration reminders, Timer Setters and access control turnstiles. Suitable for trampoline parks, laser tag arenas, indoor playgrounds and activity centers.

Best For

Trampoline Parks: Assign each visitor a fixed jumping session and provide a personal reminder before the play time ends. The entrance and exit turnstiles can check whether the wristband is still valid.

Laser Tag Arenas: Set the duration for each game group and let players check their remaining time without leaving the activity area.

Indoor Playgrounds: Help children, parents and staff see the remaining session time directly from the wristband, reducing repeated time enquiries at the front desk.

Climbing and Adventure Centers: Assign access according to the selected activity area and play duration. Expired wristbands can be prevented from entering again.

Multi-Zone Activity Venues: Configure different activity areas with different access permissions or play durations according to the visitor’s selected package.

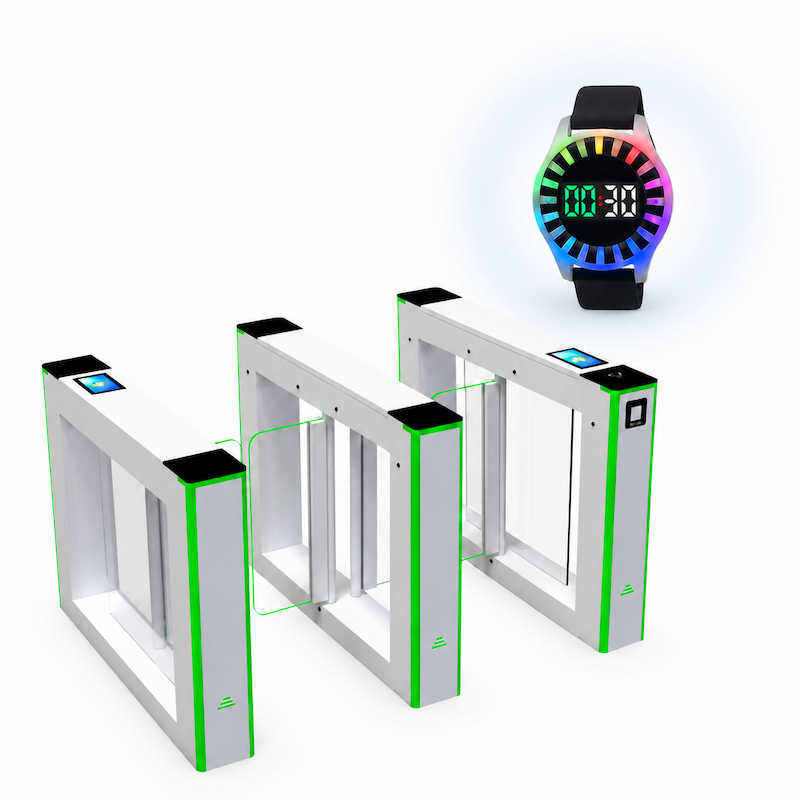

Complete System Components

How the Complete System Works

1. Register the Wristband

Staff register the wristband UID in the system and assign the visitor's permitted activity area and play duration.

2. Set or Activate the Countdown

In the standard operating method, the countdown begins when staff write the time to the wristband. For customized projects, the countdown can be configured to start when the visitor scans at the entrance.

3. Check the Wristband at the Entrance

The entrance reader checks whether the wristband has been registered, whether access is still valid and whether the visitor is permitted to enter that activity area. When the conditions are met, the connected turnstile opens.

4. Display the Remaining Time

The visitor can press the display button to check the remaining play time. The LED ring provides an additional visual indication during the session.

5. Remind the Visitor

Five minutes before the session ends, the wristband displays a yellow LED indication and vibrates three times. When the countdown reaches zero, the selected expiry reminder program starts.

6. Apply Expiry and Re-entry Rules

An expired wristband can be prevented from entering again. The system can also apply repeat-entry rules according to the operating requirements of the venue.

7. Check at the Exit

The exit reader checks the current wristband status. For overtime sessions, the exit can be configured not to open automatically and the visitor can be referred to staff.

8. Collect Charge and Reuse

Staff collect the wristbands after use, reset the timer, update the access permission and recharge them when required before issuing them to the next visitors.

Charging Options for Different Venue Sizes

Single-Area and Multi-Area Operation

Single-Area Management

A single duration is assigned to each visitor and checked at the main entrance and exit. This configuration is suitable for trampoline parks, laser tag arenas and indoor playgrounds operating one main timed activity area.

Multi-Area Management

Different access permissions or play durations can be assigned to different zones. The reader at each entrance checks whether the wristband is permitted to enter that specific area. This configuration is suitable for venues combining trampoline, climbing, adventure and children's activity areas.

Common Questions

Does the wristband show the remaining play time?

Yes. Visitors or staff can press the display button to check the remaining countdown time.

How are visitors reminded before the session ends?

Five minutes before expiry, the wristband displays a yellow LED indication and vibrates three times.

What happens when the countdown reaches zero?

The wristband follows the selected expiry program: either three vibrations with overtime display or continuous vibration without overtime display.

Can the wristband open an entrance turnstile?

The wristband UID can be registered in the system. The entrance reader checks the access conditions and opens the connected turnstile when access is valid.

Can an expired wristband enter again?

The system can be configured to block expired wristbands from entering again.

Can the system prevent repeated entry?

Yes. Repeat-entry rules can be applied according to the operating requirements of the venue.

Can overtime visitors be stopped at the exit?

The exit can be configured not to open automatically for an overtime wristband, allowing staff to check the situation.

Can different activity areas have different durations?

Yes. A customized multi-area configuration can assign different access permissions or play durations to different zones.

Can the countdown begin when the visitor enters?

The standard countdown begins when the time is written. Entrance-triggered activation is available as a customized configuration.

Is the wristband reusable?

Yes. Staff can collect, reset, recharge and issue the MH-CR03 wristband again.

Do you provide system integration assistance?

Yes. Technical assistance and an API interface are available for compatible system configuration and testing.
