13. 56Mhz Rfid NFC Contactless Smart Card Reader ACR122U

NFC smart card reader is contactless Desktop NFC reader to read/write 13.56MHz technology.The optimized transaction times help to achieve real tap and go for best possible end user convenience and acceptance. It handles all of them, ID1 sized cards, key fobs, any size of token, NFC labels or even NFC enabled smart phones.

  • item no.:

    13. 56Mhz Rfid NFC Contactless Smart Card Reader ACR122U
  • Payment:

    T/T,Western Union,Paypal
  • product origin:

    China
  • Color:

    Customized
  • shipping port:

    Shenzhen,Hongkong
  • Lead Time:

    2-3 working days
inquiry now
product details

Product Name:13. 56Mhz Rfid NFC Contactless Smart Card Reader ACR122U

Description
NFC smart card reader is contactless Desktop NFC reader to read/write 13.56MHz technology.The optimized transaction times help to achieve real tap and go for best possible end user convenience and acceptance. It handles all of them, ID1 sized cards, key fobs, any size of token, NFC labels or even NFC enabled smart phones.

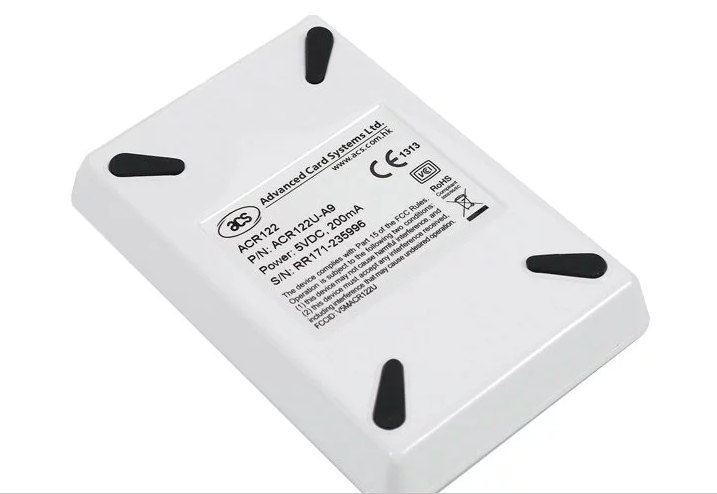

ACR122 is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.

The ACR122 is a USB Plug and Play device with CCID compliance. By making use of up to 424 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122 can read and write faster and more efficiently. The proximity operating distance of ACR122 is up to 5 cm, depending on the type of contactless tag in use. Operating distance can be extended on request by adding an RF boaster, so the ACR122 is suitable for logistics and supply chain management.

In order to increase the security level, the ACR122 can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122 is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.

With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122.
NFC Reader

 Specification
1.Dimensions:98 mm (L) x 65 mm (W) x 12.8 mm (H)
2.Weight:70 grams
3.Interface:USB Full Speed
4.Operating Distance:<= 50mm
5.Supply Voltage:200mA (operating); 50mA (standby); 100mA (normal)
6.Operating Temperature:0-50°C
7.Operating Frequency:13.56 MHz
8.Standards/Certifications:ISO14443 1-4, CE, FCC, RoHS Compliant
9.Operting System Support:Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8
Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x 64, Win 2012 x64
Windows CE 5.0 and 6.0,Linux,Android 3.1 and above

Our Advantage
1.USB Full Speed (12 Mbps)
2.USB PnP
3.Bi-Color LED
4.Built-in Antenna
5.NFC Reader
6.ISO/IEC18092 (NFC) compliant
7.NFC Tags Access Speed = 424 kbps
8.Contactless Smart Card Reader
9.Support FeliCa card
10.Support ISO 14443 Type A & B cards
11.cards (Classics, DES Fire)
12.CCID Standard:
CE and FCC Certificated
RoHS Compliant
User Controllable Buzzer (optional)
SAM Socket (optional)
ACR122U NFC Reader
