Home RFID Readers

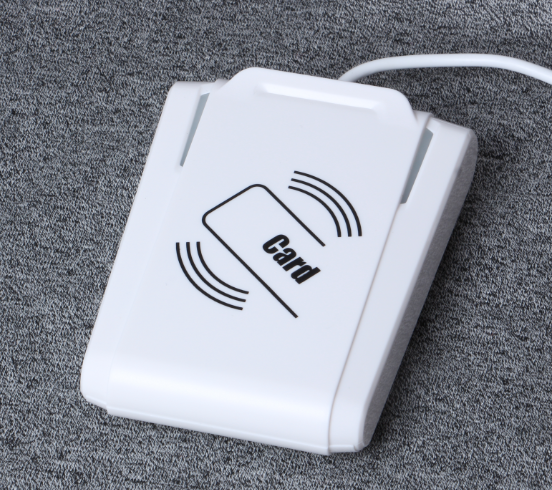

ISO15693 rfid reader HF 13.56MHZ USB RFID reader

Name: ISO15693 rfid reader HF 13.56MHZ USB RFID reader
Availability: InStock

RFID’s High frequency (HF)13.56 MHz readers can read tags within a distance of 1 to 12 inches and include the use of the NFC protocol. Compatible with most MI@FARE™ tags, we offer HF 13.56 MHz readers in many form factors such as fixed readers or handheld devices that are perfect for your desktop or mobile environment.

Item NO. :
13.56MHZ USB RFID reader

Payment
T/T, Western Union, Paypal
Product Origin
Shenzhen, China
Color
Customized
Shipping Port
Shenzhen, Hongkong
Lead Time
7-8 working days
Brand
MH
Product Minorder
500

Inquiry Now

C-series Contactless Smart Card Reader
Host Interface
Interface	USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps) or PC/SC CCID
Power Source	From USB port
Supported Operating Systems			Windows reg; XP, Windows reg; 7, Windows reg; 8.1, Windows reg; 10, Linux reg;, Android4.0 above
Contactless Smart Card Interface
Standard		ISO/IEC 14443 TypeA, TypeB (Optional), ISO/IEC 15693 (Optional)
Support the card type		Mifare reg; Classic Protocols card,UltraLight,UltraLight C,T=CL CPU card, Ntag213,Ntag215,Ntag216,DESfire(Optional),I-CODE2 (Optional)
Smart Card Read /Write Speed			106kbit/s, 212kbit/s, 424kbit/s, 848Kbit/s
Operating Distance		Up to 50 mm
SAM Card Interface (Up to 2 Slots)
Standard		ISO/IEC 7816 Class B (3V)
Protocol		T=0; T=1
Smart Card Read /Write Speed			9,600-115,200 bps
Built-in Peripherals
Buzzer		Monotone
LED Status Indicators		2 LED (green and red)
Physical Specifications
Dimensions		118mm (L) x 78mm (W) x 18mm (H)
Weight		150g
Operating Conditions
Temperature		-10°C – 60°C
Humidity		10% to 90%, non-condensing
