Custom printed 13.56 MHz 1K NFC NTAG213 RFID Nylon plastic Cable Zip tie tag
Resistant and versatile adjustable indicative plastic seal with RFID technology, Available in UHF, HF and NFC operative frequency bands.
It is an RFID tag that can be easily bound to any target object to identify, trace source, information collecting, Management for animals, foods, warehouse, trace to package, containers, assets, logistics. The RFID tag is in the external position of the binding, not affected by the binding material. Ideal for quick and strong attachment, Can be delivered with metal or plastic strong cable. Read range from 0.2m up to 10 m ( relate with tag antenna and reader ) make this seal suitable for plenty of applications, from transport, to safety, to industry or postal services.
Product Description
|
Material
|
Tag: ABS or PP plastic
Cable: nylon 66 or PP plastic
|
|
Frequency
|
13.56Mhz HF ( ISO 14443A / NFC / ISO15693 )
860-960Mhz UHF ( ISO 18000-6C )
|
|
Chip
|
UHF: NXP UCODE7/8/9; Alien H3; Monza4QT; ect
HF: FM1108, NTAG213/215/216 ect
|
|
Protocol
|
UHF: ISO 18000-6C;
HF:ISO14443A;
|
|
Reading range
|
0.2-10 meters ( relate with tag antenna and reader )
|
Crafts
|
Single color or multi-color printing, barcode or QR code printing, data encoding, etc.
|
|
Size
|
S: 19×12×160 / dia28×176 / 33×23×198 / dia33×200mm
M: 52×27×328 / 53×53×300 / 70×28×416 / 75×30×330mm
L: 92×28×448 / 105×29×328mm
or custom any size
|
|
Color
|
Red / yellow / blue / green / purple / black / white ... or customized
|
Working temperature
|
10℃~65℃
( if lower -10℃, need to use customized cold resistant material )
|
Storage temperature
|
-30℃~75℃
( if lower -10℃, need to use customized cold resistant material )
|

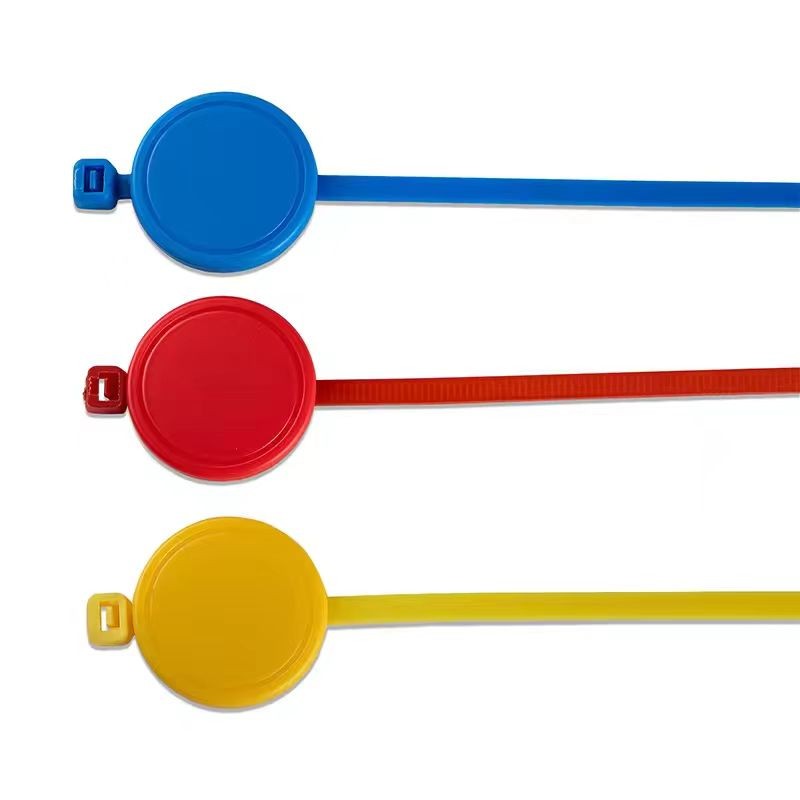

Product Show
RFID Tie Tags Features
* Flexible and easy to attach.
* Reading range up to 45 feet.
* Dust-tight and waterproof.
* Customize with engraving or coding.
* RFID cable seals are resistant to chemical attack, heat resistant, have a certain degree of hardness.
* Acid proof, corrosion resistance, good insulation, light weight, safe and non-toxic, resilience.
* E Disassembly of the lock on the market, one time use the lock or reusable.
* Flip latch location, cable band insert will not come out, excellent locking effect.

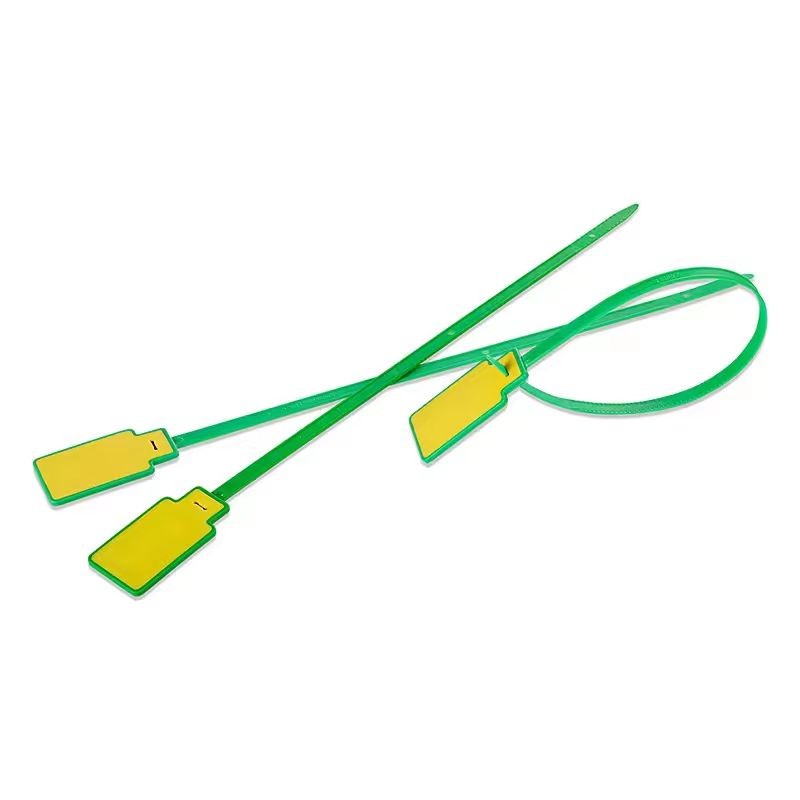

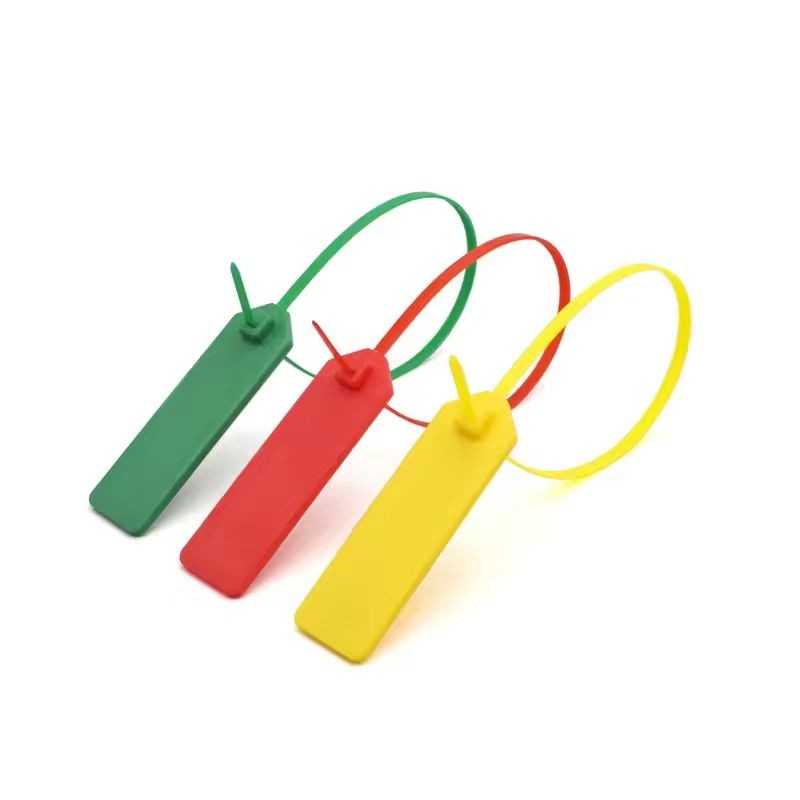

Disposable RFID Cable Tie Tag
1. Long range reading, with UHF chip, can reach 8 meters with 8dbi reader.
2. It can support multi-identification at the same time.
3. The chip can be rewritten more than 100,000 times, and can store data for more than 10 years.
4. With the function of sun, water and anti-dip, ideal for indoor and outdoor use.
5. Tag surface can be customized to print logo, print number, barcode and QR code.
6. disposable, waterproof and shockproof

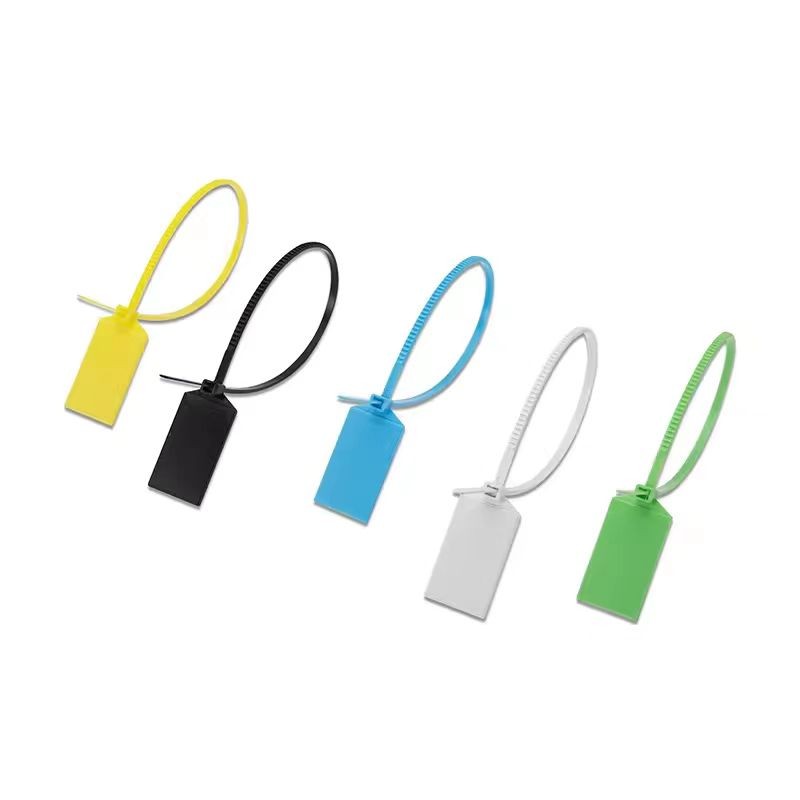

Reusable RFID Cable Tie Tag
1. Key Feature: Reusable lock, waterproof, shockproof
2.Customization: logo printing, serial number/UID pint number
3. Size: 282x79x28mm (tie length: 7.6mm)
4. Chip: UHF and HF are available; Alien H3, Impinj M4E, Impinj M4QT; Ntag213, F08, Ultralight EV1, etc.
5. The chip can be rewritten more than 100,000 times and can store data for more than 10 years.
6. Secure install and prevent disassembly.
More Types
Application
RFID cable tie tag can be widely applied in warehouse management, pallet, ground transportation, cash bag, mail bag and case tagging.
