The UHF RFID Jewelry Tag is a high-performance tag that operates in the global frequency range, complying with EPC Global Class 1 Gen 2 and ISO-18000 6C standards. This tag is designed to excel in challenging RF environments, ensuring reliable performance and enhanced read rates even in densely packed cases. With a wide bandwidth of 860-960MHz, it offers unparalleled performance.
Key features of this tag include a 96 to 128-bit EPC number, a 32-bit TID with a tamper-proof design, and anti-collision capabilities, enabling the simultaneous reading of multiple jewelry tags in the field.
Item NO. :
Custom Printing UHF Anti-theft RFID Jewelry Tag For jewellerPayment
T/T, Western Union, PaypalProduct Origin
Shenzhen, ChinaColor
CustomizedShipping Port
Shenzhen, HongkongLead Time
7-8 working daysBrand
MHProduct Minorder
500
Custom Printing UHF Anti-theft RFID Jewelry Tag For jewellery Management
Notable characteristics of the UHF RFID Jewelry Tag are its long read range, with an average reading distance of up to 4 meters. It consistently delivers stable performance and is equipped with a waterproof surface material, ensuring durability even in harsh conditions. The tag is further enhanced by a strong adhesive glue, guaranteeing secure attachment to jewelry items.
Features
1) Long Read Range: average reading distance reach up to 4m
2) Stable performance
3) Waterproof surface material
4) Strong adhesive glue
Product Description
Jewelry label is divided into two kinds of materials in general: white film and silver, mainly reflected in the white and silver, for LOGO standard can be printed or bronzing / silver way to deal with.
| Surface material | Pearl paper/Coated Paper/PET |
| Dimension | 106*15mm/Folded size 53*13mm(customized) |
| Frequency | 860-960Mhz/13.56Mhz |
| Standard/Protocol | ISO18000-6C/1443A |
| Chip type | Alien H3/FM1108(Customized) |
| Memory | TID 64bit |
| Reading range | 1-20CM(relates with the chip,reader and working environment) |
| Printing | Silkscreen printing,Rotary printing,Offset printing |
| Date retention time | 10 years |
| Reading/Writing endurance | 100.000 times |
| Operating temperature | -20 ℃~+65 ℃ |

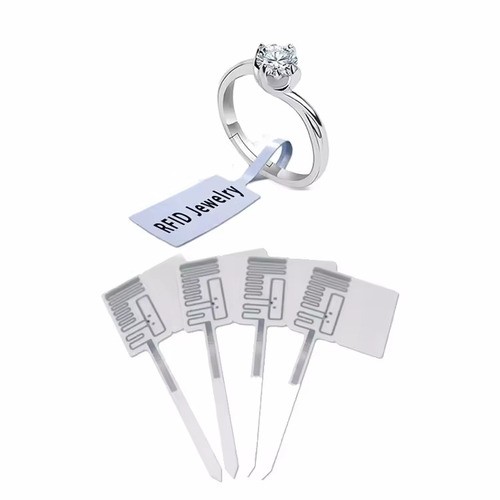

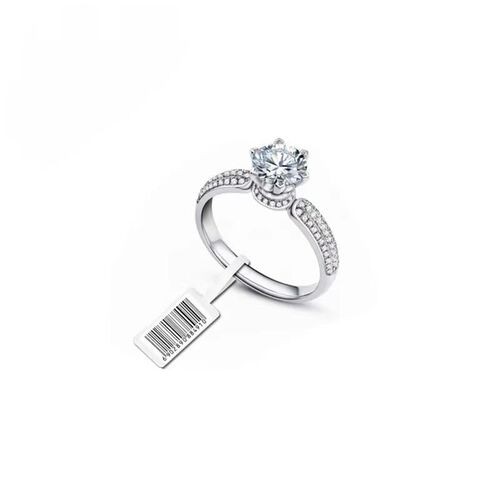

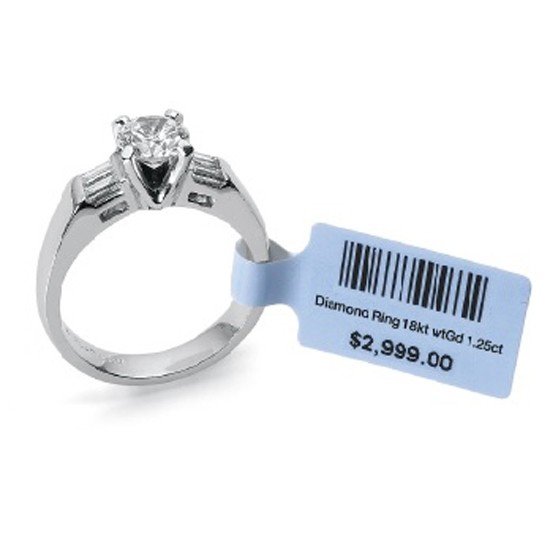

Product Show
Different Types
◆According to the coating area, there are two main categories
1)First: the whole plastic, it is divided up and down fold and left and right fold, style and size of some difference.
2)Second: no glue area, it is divided on the side with a stick and the right with a bar, a wide range of styles.
◆According to the label material, can be divided into four categories
1)First: copper + transparent PET;
2)Second: copper + pearl Asian silver;
3)Third: copper + pearl PET
4)Fourth: bright white PET
◆According to the label tied to the way, can be divided into three categories
1)First;
2)Second: no holes;
3)Third: with a stick
Application
