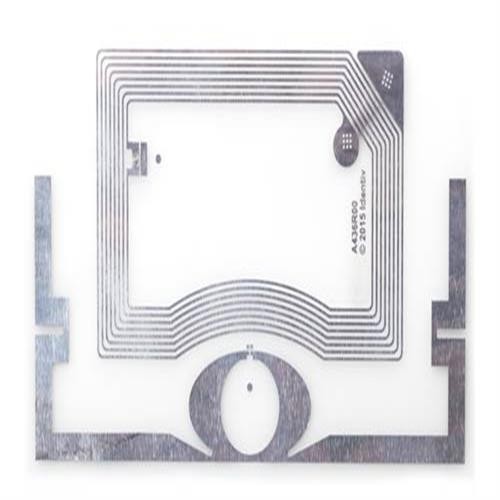

Double Frequency RFID Erstick Portfolio RFID Inlays (HF + UHF)

Product Name:Double Frequency RFID Erstick Portfolio  RFID Inlays (HF + UHF)

Description
Meihe's radio frequency identification (RFID) inlay portfolio offers up multiple designs integrating various materials, chip technologies, and frequencies for metal and non-metal environments.

Specification
1.Frequency: 860-960 MHZ+13.56MHz
2.Standard/Protocol: ISO18000-6C+1443A
3.Chip type: EM4423/Qstar-6S(customized)
4.Memory:TID96bit
5.Reading range: 1-10M (relates with the chip,reader and working environment)
6.Dimension: 72-23mm/57*25mm/30*48mm/86*30mm(customized)
7.Data retention time: 10 years
8.Reading/Writing endurance: 100.000 times
9.Operating temperature:-20°C~+65°C
10.Base material：PET
11.Processed：aluminum etching
12.Meet the standard：18000-6C
13.Chip storage ：800bit
14.Carrier frequency： 860-960MHz
15.Working mode： passive

Our Advantage

Dry (chip + antenna + epoxy glue + [PET] film) or wet (adhesive backing) inlays can be directly embedded into third-party products or converted into finished products. Applications that could benefit include the Internet of Things (IoT), near field communication (NFC) smart posters and billboards, libraries, event and transportation ticketing, automotive and chemical industries, logistics and supply chain, asset management, pharmaceuticals and healthcare, device authentication and counterfeit protection, electronic games, event management, wearable technology, customer loyalty programs, and more.

Application

logistics and supply chain, asset management, pharmaceuticals and healthcare, device authentication and counterfeit protection, electronic games, event management, wearable technology, customer loyalty programs, and more.
