Dual Frequency RFID HF with UHF Hybrid Combi Smart Card

Dual Frequency RFID HF with UHF Hybrid Combi Smart Card

Meihe Hybrid Smart RFID Card Features:

1. One card with multiple function

2. Hybird cards, with 125Khz  & 13.56Mhz  & UHF frequency  & magnetic stirpe

3. The card can be contact  &contactless; contactless  &contactless

Dual Frequency RFID HF with UHF Hybrid Combi Smart Card

Hybrid/Combo Smart Card is one of the smart cards, which contains two chip, both contact and contactless chip, that are laminated by plastic sheets and not interconnected. These cards have dual interface. You can read it through physical contact or radio frequency and perform the same operation by contact interface or contactless interface. But they follow different standards, the former for ISO/IEC 7816, and the later for ISO/IEC 14443.

1. Combi RFID Card LF 125KHz + HF 13.56MHz:

Standard ISO card,

Laminated PVC card, blank Card or preprinted full color 2 sides,

Frequency: LF 125Khz + HF 13.56MHz card , Dual interface card;

Protocol: ISO11784/11785 + ISO14443A / ISO18092 / ISO15693

2. Hybrid RFID Card LF 125KHz + UHF EPC Gen2:

Standard ISO card,

Laminated PVC card or PET or PET-G card, blank Card or preprinted full color 2 sides,

Frequency: LF 125KHz + UHF 860MHz -960MHz,

Protocol: ISO11784/11785 + ISO18000-6C, EPC class 1 Gen2

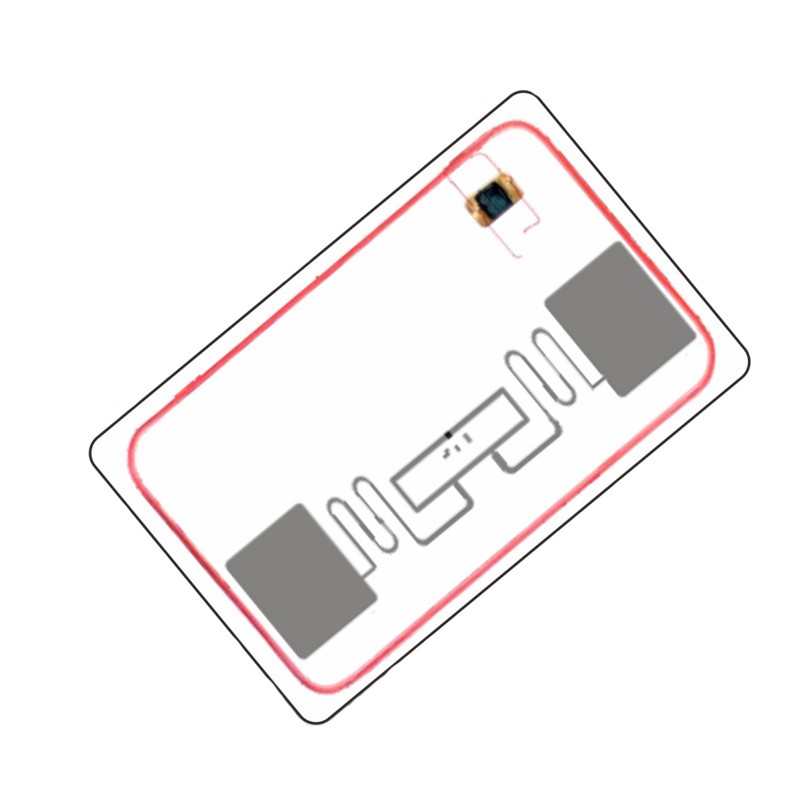

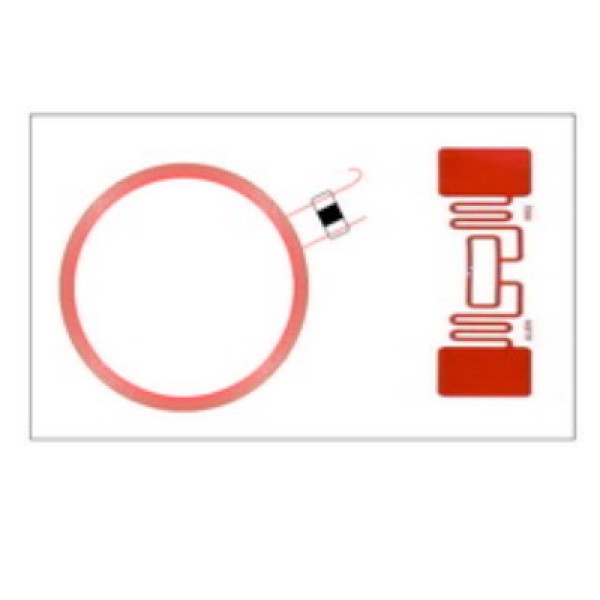

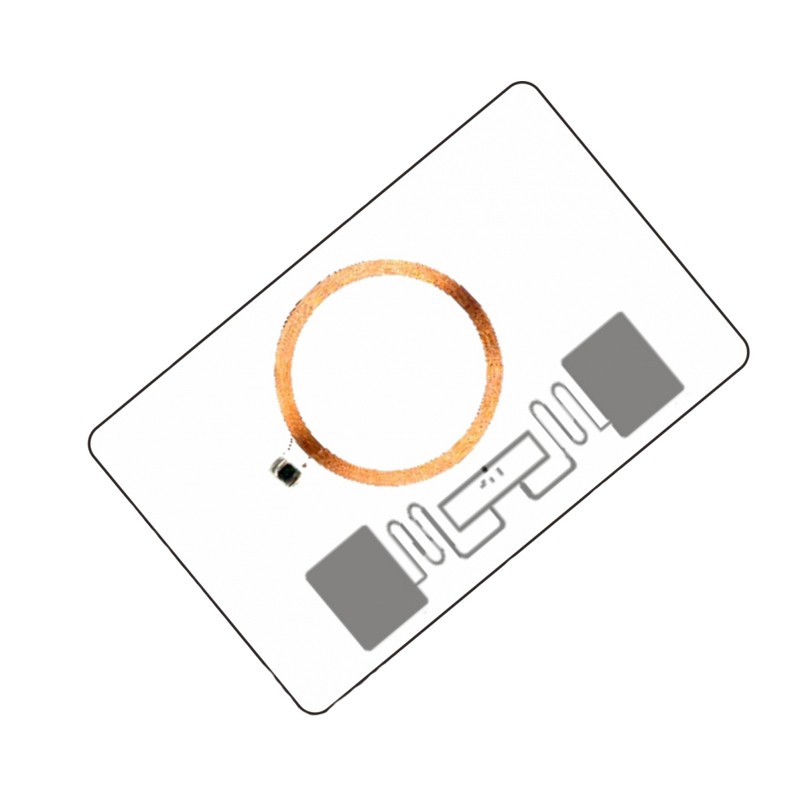

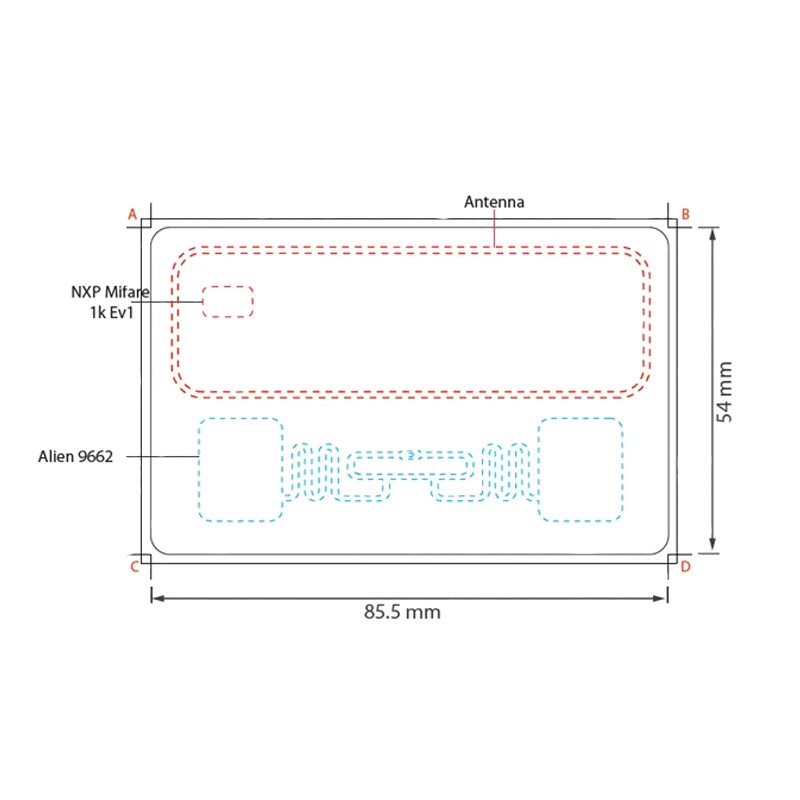

3. Dual Frequency Combo Card HF 13.56MHz + UHF EPC Gen2 :

Standard ISO card,

Laminated PVC card or PET or PET-G card, blank Card or preprinted full color 2 sides,

Frequency: HF 13.56MHz + UHF 860MHz -960MHz,

Protocol: ISO14443A / ISO18092 / ISO15693 + ISO18000-6C, EPC class 1 Gen2

4 .Dual Protocol Card ISO15693 + ISO14443A:

Standard ISO card,

Laminated PVC card or PET or PET-G card, blank Card or preprinted full color 2 sides,

Protocol: ISO15693 + ISO14443A

5. Contact + Contactless Card

Standard ISO card,

Laminated PVC card or PET or PET-G card, blank Card or preprinted full color 2 sides,

Available Personalizations or Crafts

Hot stamp (gold/silver/red), Laser silver/gold, Laser Engraving, Ink jet printing, Scratch off panel, Barcode/QR code, Thermal printing, Hologram, Embossing, Adhesive sheet, UV ink, Hologram, Hole punch, etc.

Dual Frequency RFID HF with UHF Hybrid Combi Smart Card

Customized information or data could be encoded into the magnetic stripe or chips. With doing this, customers could put some corresponding information into the cards to make sure they are running on the right system and belong to the right person.
