Printable UHF RFID Laundry Tags for Sew On and Heat Seal Installation

Printable UHF RFID Laundry Tags for Industrial Textiles

When linens uniforms and reusable textiles move repeatedly through collection washing drying sorting and return each item needs an identity that stays with it. These printable UHF RFID laundry tags provide that identification in a flexible polyester format built for industrial washing processes.

Specifications

Best For

Industrial Laundry Services: Use UHF laundry tags to identify large batches of garments and textiles during collection washing drying sorting and return.

Hotel and Linen Rental: Track sheets towels uniforms and other reusable linens as they move between hotels laundry facilities and rental inventory.

Healthcare Textiles: Identify bedding gowns uniforms and other reusable healthcare textiles that require repeated washing drying and sterilization.

Uniform and Workwear: Attach the tags to workwear rental garments and staff uniforms for identification throughout collection cleaning and redistribution.

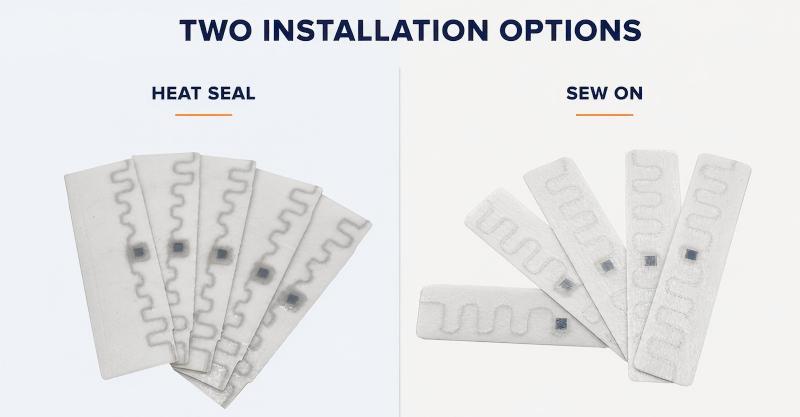

Choose the Installation Method

Sew On Laundry Tags

Sew on tags are attached directly to the textile using the recommended stitching area. The sewing line should avoid the internal chip and antenna area. This option is suitable when a permanent stitched attachment is preferred or when the textile is not suitable for heat pressing.

Heat Seal Laundry Tags

Heat seal tags include a factory applied adhesive layer and are attached with heat and pressure. The correct temperature pressure and pressing time depend on the textile material and should be confirmed through testing before production. The two installation options use different tag structures. Please tell us which method you plan to use when requesting samples or a quotation.

Choose the UHF Chip

NXP UCODE 9xe Impinj M830 and other common UHF chips are available. The chip should be selected according to the required EPC memory tag size read performance printer or encoder and the customer’s existing RFID system. If you already have a specified chip please send us the model. If not provide the application reader and data requirements and we can confirm a suitable option.

Common Questions

Which installation method should I choose?

Choose sew on installation when stitching is practical or the textile is unsuitable for heat pressing. Choose heat seal installation when a flat adhesive attachment is preferred and the textile can withstand the required heat and pressure.

Can I print and encode the tags with my own RFID printer?

This depends on the printer model media sensor roll core label gap and encoding configuration. Send us the printer model before ordering so we can confirm a suitable roll format.

Will every tag size read from 12 to 15 m?

No. This is a reference range for suitable tag models and test conditions. Smaller sizes textile stacking reader settings and the installation environment can reduce the actual distance.

Can you match printed and electronic data?

Yes. EPC TID barcodes QR codes and printed serial numbers can be matched individually according to the customer's data rules.

Request a Sample or Quote

Stock samples are free and the customer pays the courier cost. We recommend testing the installation washing printing and reading performance before placing a bulk order. For a quotation please provide the required size quantity installation method chip printing or encoding requirements and your RFID printer or reader model if available.
