RFID laundry tags are used in dry cleaner, washing uniform, hotel bath towel smart laundry management. Convenient for product tracking, quality management, access control, so that enterprise production and process management optimization. This silicone laundry tags have long distance, suitable for garment factories.
Item NO. :
Silicone laundry tagPayment
T/T, Western Union, PaypalProduct Origin
Shenzhen, ChinaColor
CustomizedShipping Port
Shenzhen, HongkongLead Time
7-8 working daysBrand
MHProduct Minorder

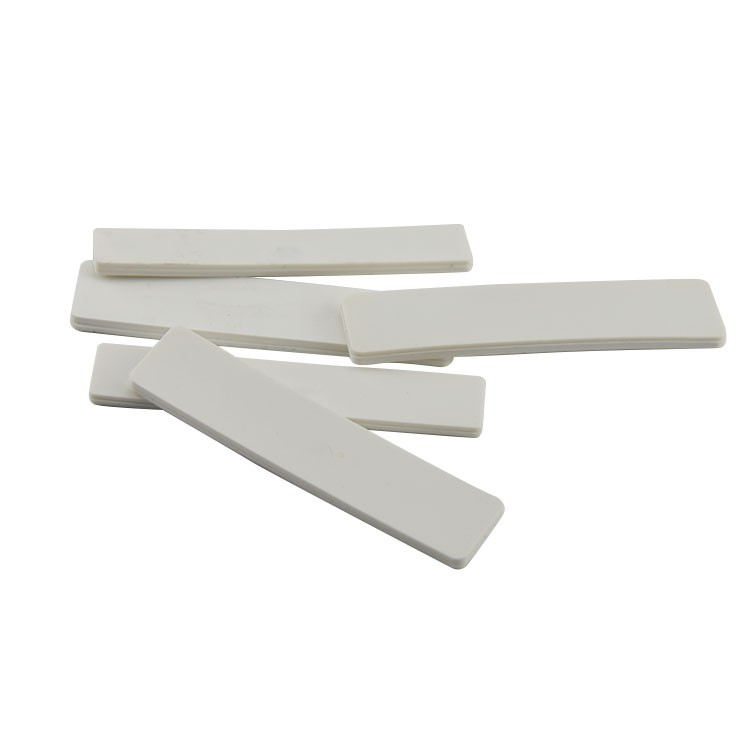

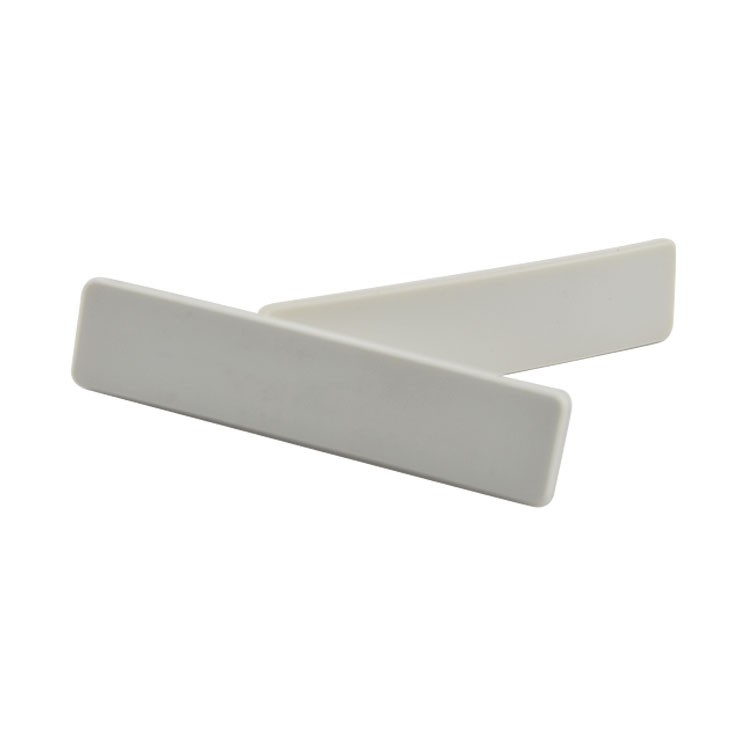

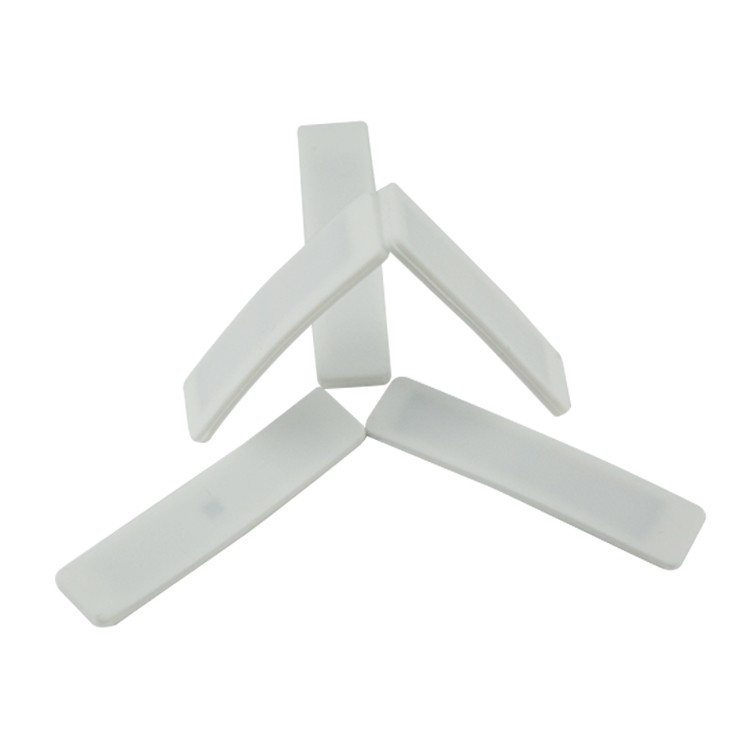

500Washable RFID UHF Silicone Laundry Tag For Textile
RFID UHF Laundry Tag is especially suitable for clothing and linen industrial washing, which can withstand 180 degrees high temperature ironing, 56 bar pressure resistance, and industrial washing resistance for more than 200 times.
100% function tested by Voyantic Performance Tester.
100% EPC and User memory checked.
|
Electrical Specification
|
|||
|
Air Interface Protocol
|
EPC Class1 Gen2, ISO18000-6C
|
||
|
Device Type
|
Passive UHF Transponder
|
||
|
Operational Frequency
|
860 to 960MHz
|
||
|
IC Type
|
EPC 128bits, User:32bits, Passord:32bits, TID:96bits
|
||
|
Data Retention
|
10 years
|
||
|
Polarization
|
Line Polarization
|
||
|
Mechanical Specification
|
|||
|
Dimensions
|
60*20*1mm for Fabric laundry tag
|
||
|
85*27*4mm, 55*12*2.5mm Etc for Silicone laundry tag
|
|||
|
Tag Material
|
Fabric, Silicone
|
||
|
Environmental Resistance
|
|||
|
Store Temperature
|
-40°C~ +120°C / -40°F~ +248°F
|
||
|
Operating Temperature
|
Ironer: 180°C@ 15sec, 200cycles
|
||
|
Dryer: 85°C @120min, 200 cycles
120°C @ 60 min, 200 cycles 150°C @ 20min, 200 cycles |
|||
|
Pressure Resistance
|
Up to 56 bars
|
||
|
Application
|
|||
|
Linens Managenemt
Uniform Management Hospital Laundry Management Hotel Laundry Management Industrial Textile Management |
|||
Application：Clothing tracking/tracing & Recoding the process laundry etc
Material：Silicon/PVC
Chip：Alien H3
Frequency：860~960Mhz
Read-write sensitivity：-14dBm(reference range:6M)
Working temperature：200℃ bearable
Life time：300 times industrial washing
Sample;Sample is free for your quality tes
