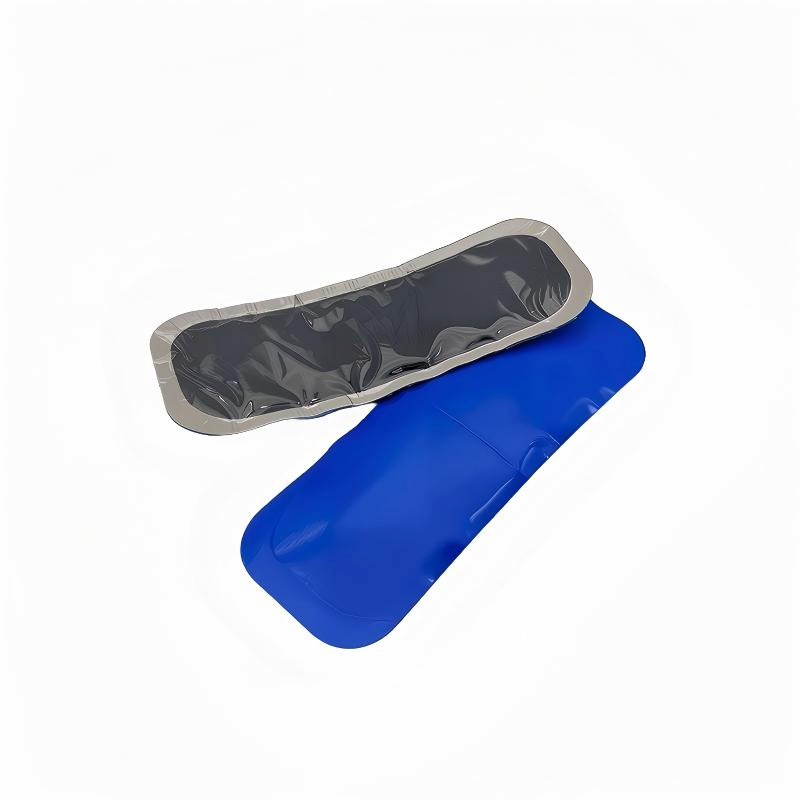

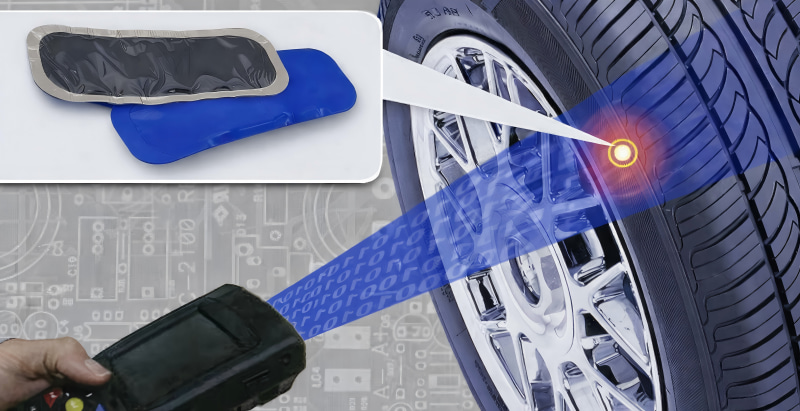

This UHF RFID tire tag is widely used for tire tracking, fleet management, logistics vehicles, and tire manufacturing control. The tag is designed to resist high temperature, pressure, and vibration, ensuring reliable performance during tire production and long-term use. Compatible with EPC Gen2 / ISO18000-6C, it enables long-range identification and full lifecycle management for modern transportation and industrial systems.
Payment
T/T, Western Union, PaypalProduct Origin
Shenzhen, ChinaColor
CustomizedShipping Port
Shenzhen, HongkongLead Time
7-8 working daysBrand
MHProduct Minorder
500Long Range UHF RFID Tire Label for Tire Factory and Transportation Systems

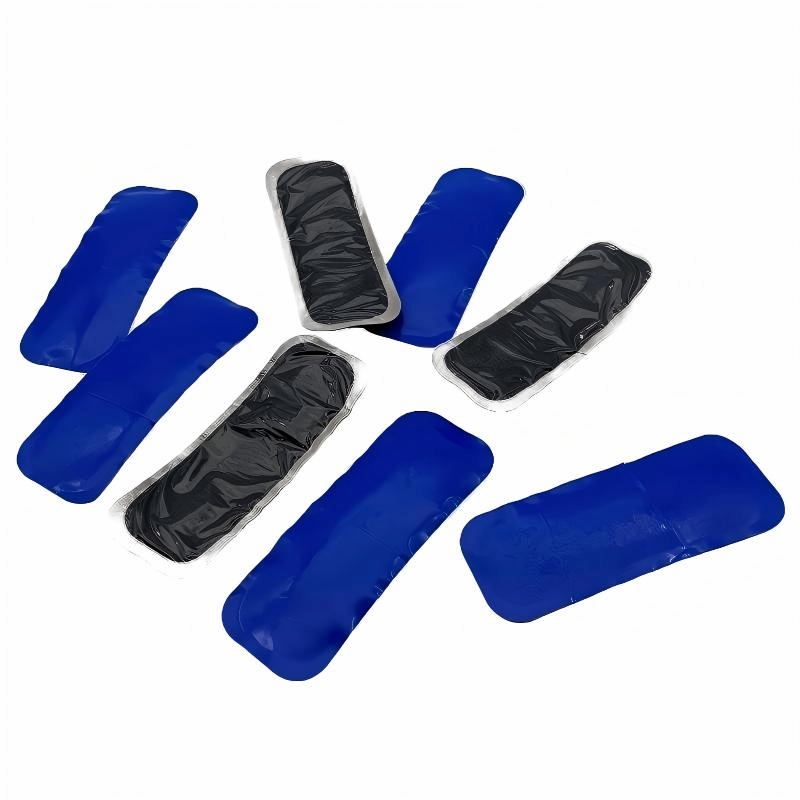

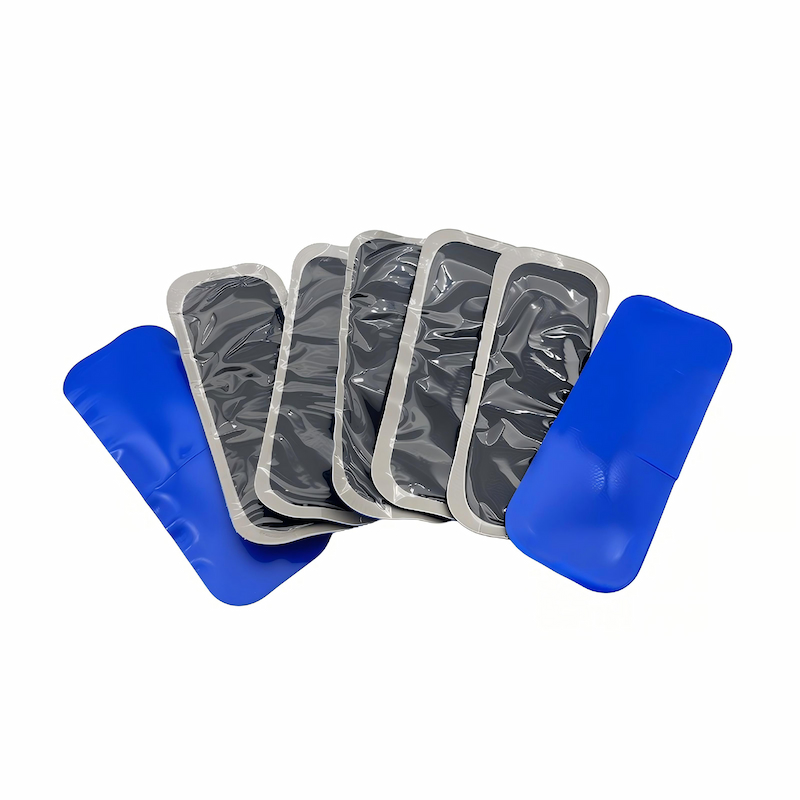

This UHF RFID Tire Tag is specially designed for tire identification and lifecycle management in harsh environments. The tag can withstand high temperature, pressure, and deformation, making it suitable for tire manufacturing, fleet management, logistics vehicles, and industrial transportation systems. It operates in the global 860–960 MHz UHF band and supports EPC Class1 Gen2 / ISO18000-6C protocol, allowing long-range and automatic identification. The tag can be embedded into the tire or installed during the vulcanization process to ensure reliable performance throughout the entire tire lifecycle.
Key Features
• UHF 860–960 MHz worldwide frequency
• EPC Gen2 / ISO18000-6C compliant
• High temperature resistance up to 200–230℃
• Designed for tire vulcanization process
• Strong anti-pressure & anti-deformation
• Long read range
• Passive RFID, no battery required
• Long data retention
• Suitable for harsh industrial environment
Typical Applications
• Tire lifecycle management
• Tire factory production tracking
• Fleet management
• Truck & bus tire control
• Logistics vehicle tracking
• Mining / heavy equipment
• Aviation tires
• Tire retreading management
• Smart transportation systems
Technical Specifications
|
Item |
Specification |
|
Frequency |
860–960 MHz |
|
Protocol |
EPC Class1 Gen2 / ISO18000-6C |
|
Chip |
Impinj / Alien / NXP optional |
|
Material |
Rubber / high-temperature compound |
|
Max temperature |
up to 230℃ |
|
Read range |
up to 6 meters |
|
Installation |
embedding / patch |
|
Data retention |
≥10 years |
|
Encoding |
available |
|
Printing |
optional |
|
Working environment |
harsh industrial |
Customization Options
We support OEM / ODM production for RFID projects.
• Chip model selection
• Size & antenna design
• High-temperature material
• EPC / UID encoding
• Custom memory data
• Logo / barcode printing
• Packaging
• Project support
Applications
• Tire manufacturers
• Fleet management companies
• RFID integrators
• Smart transportation projects
• Logistics companies
Why Choose Our RFID Tire Tags
• Professional RFID manufacturer
• Stable UHF performance
• Industrial-grade material
• Project customization support
• Fast sample delivery
• Export to 50+ countries
• Support for large volume orders
FAQ
Q: Can the tag survive tire vulcanization?
Yes, high-temperature version can withstand tire curing process.
Q: What chip can be used?
Impinj, Alien, NXP or compatible chips.
Q: Can you pre-encode EPC?
Yes, encoding service is available.
Q: What is the read range?
Normally 3–6 meters depending on reader.
Q: Do you support OEM?
Yes, full customization available
