Waterproof washable UHF fabric tag for laundry management

Waterproof washable UHF fabric tag for laundry management

RFID laundry tags are RFID tags used in laundry. By embedding the tags into clothes, automatic identification and tracking of clothes can be achieved. RFID laundry tags contain a microchip and an antenna. When the laundry tag receives the wireless signal sent by the RFID reader, it receives energy from the reader and responds through the antenna, transmitting the data stored in the chip back to the reader. It has broad application prospects in scenarios such as laundry factories, hotels, hospitals, retail and home laundry, where it can improve material management efficiency, reduce loss and confusion, and simplify the laundry process.

Product Description

Air interface protocol: EPC Global UHF Class 1 Gen 2 (ISO 18000-6C)

Operation frequency: 860~960Mhz

IC type: M4E, M4D, M4QT, Higgs-3, Higgs-4, Ucode G2

memory: EPC 96-480-bit, User 512-bit, TID 32-bit

EPC Memory Content: Unique, random number

Max reading distance: > 3 m (10 ft)

Tag size: 70*15 mm. 50*16 mm, 70*10 mm

Tag form factor: Dry inlay/wet inlay/white wet inlay (label)

Operating temperature: -40° to +70°C

Storage conditions: 20% to 90% RH

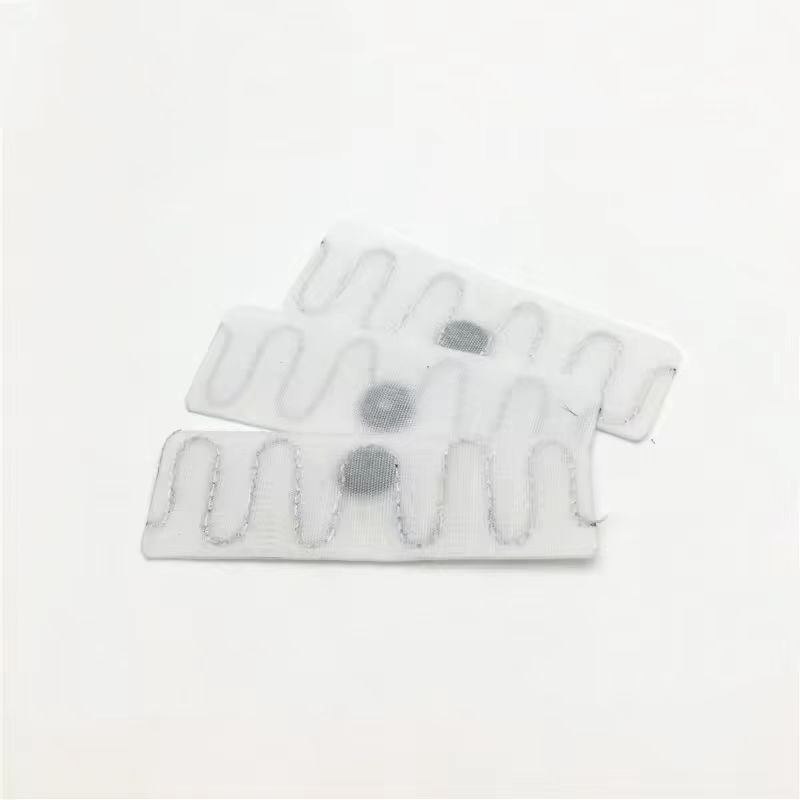

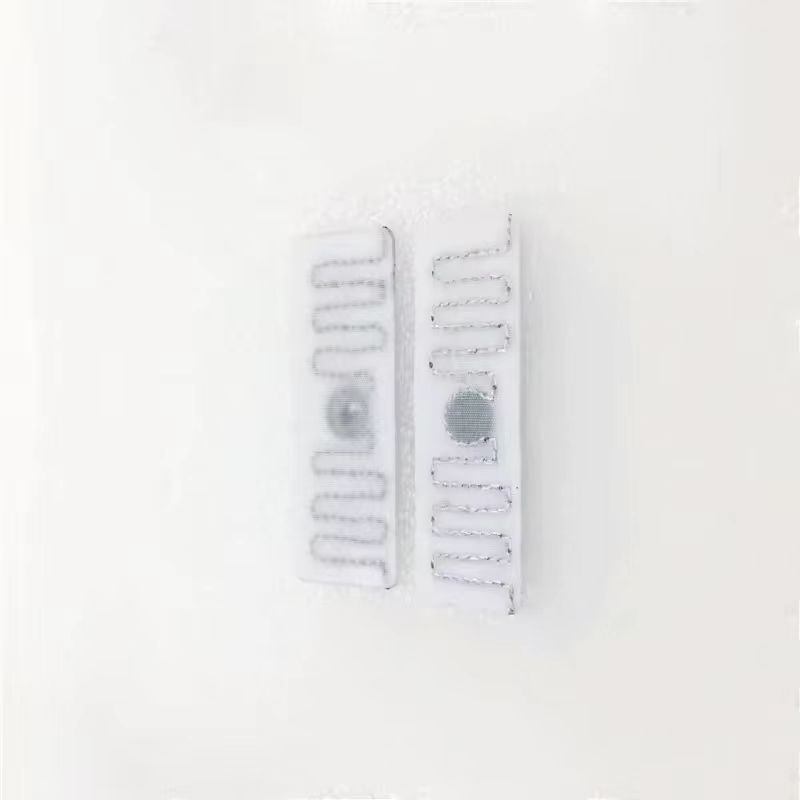

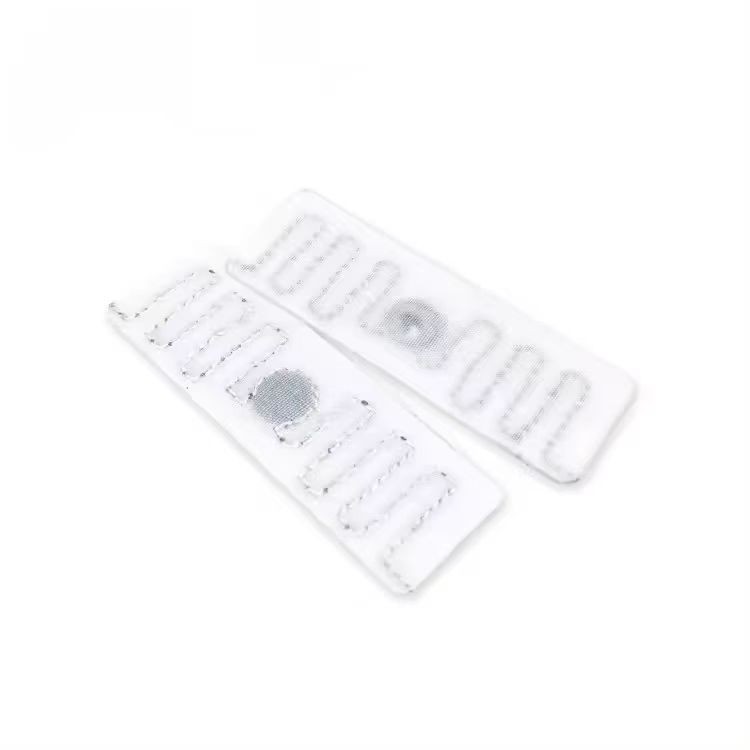

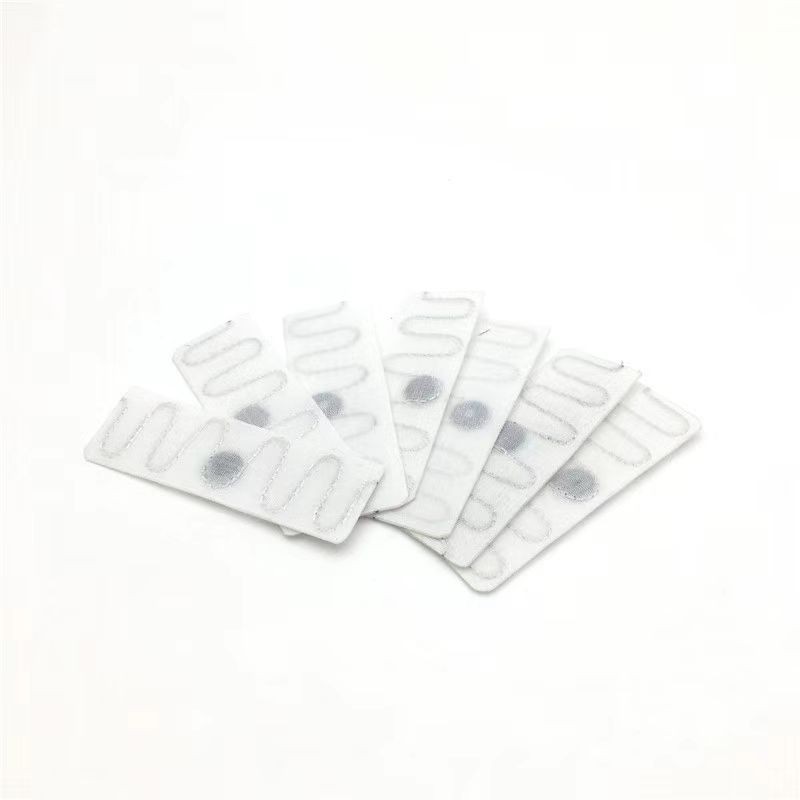

Product Show

Application
