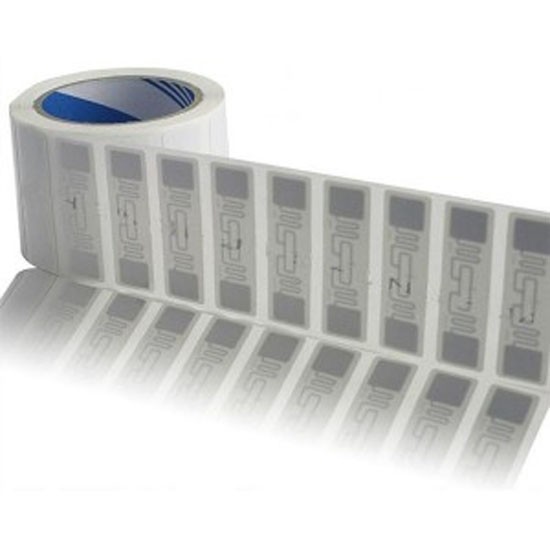

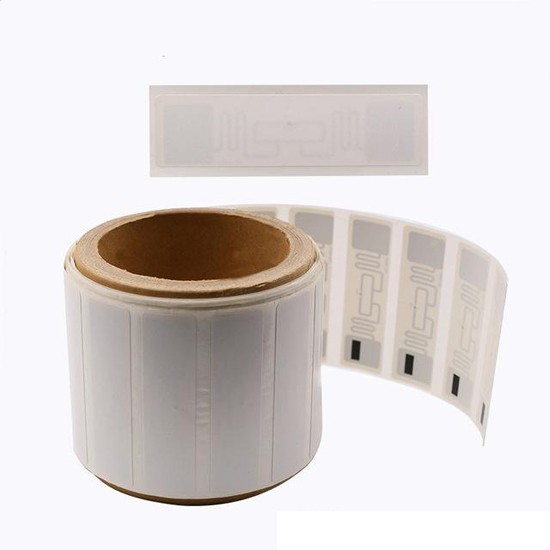

UHF Long Reading Range Adhesive Sticker

Production Name: UHF Long Reading Range Adhesive Sticker

Description
Meihe offer leading performance and memory options. Each inlay or sticker has a unique TID and a broadband RFID antenna design that enables end-users to reach and sustain consistently high levels of performance in all UHF frequency regions globally with the same inlays.

Specification
1.Available size:Alien 9662 antenna size : 70*17mm
Other uhf antenna size:128*18mm, 98*18mm, 80*27mm, 80*22mm, 80*25mm, 80*18mm, 50*18mm, 50*26mm, 50*30.5mm, 50*24mm, 50*32mm,  50*53mm, etc.
2.Surface Material:PET / Paper
3.Antenna Material:Aluminum
4.Delivery form:Dry inlay, without glue
Wet inlay , with glue,Label, paper or PET surface material
5.Performance: Parameters
6.Operating Frequency:860-960mhz
7.Protocol:EPC CLASS 1 GEN2/ISO-18000-6C
8.Chip:
Impinj Monza 4D/4E/4QT, Monza 5, Monza6 , alien h3, h4,
U CODE GEN 2 XL/ XM /iL /iL+
9.Memory:32/128/512bit
10.Work Mode:Read- Write
11.Using Life:10 years
12.Reading Times;100,000 times
13.Read Distance:6m, depend on the reader, and working environment.
14.Environment Parameters:
Operating Temperature:-25℃~+75℃
Storage Temperature:-40℃~+80℃

Application

Data Transfer,Access control,Payment management,Customized,etc.
